Duo Courtyard residence + separate 3.50 × 6.00 m carport · indicative siting

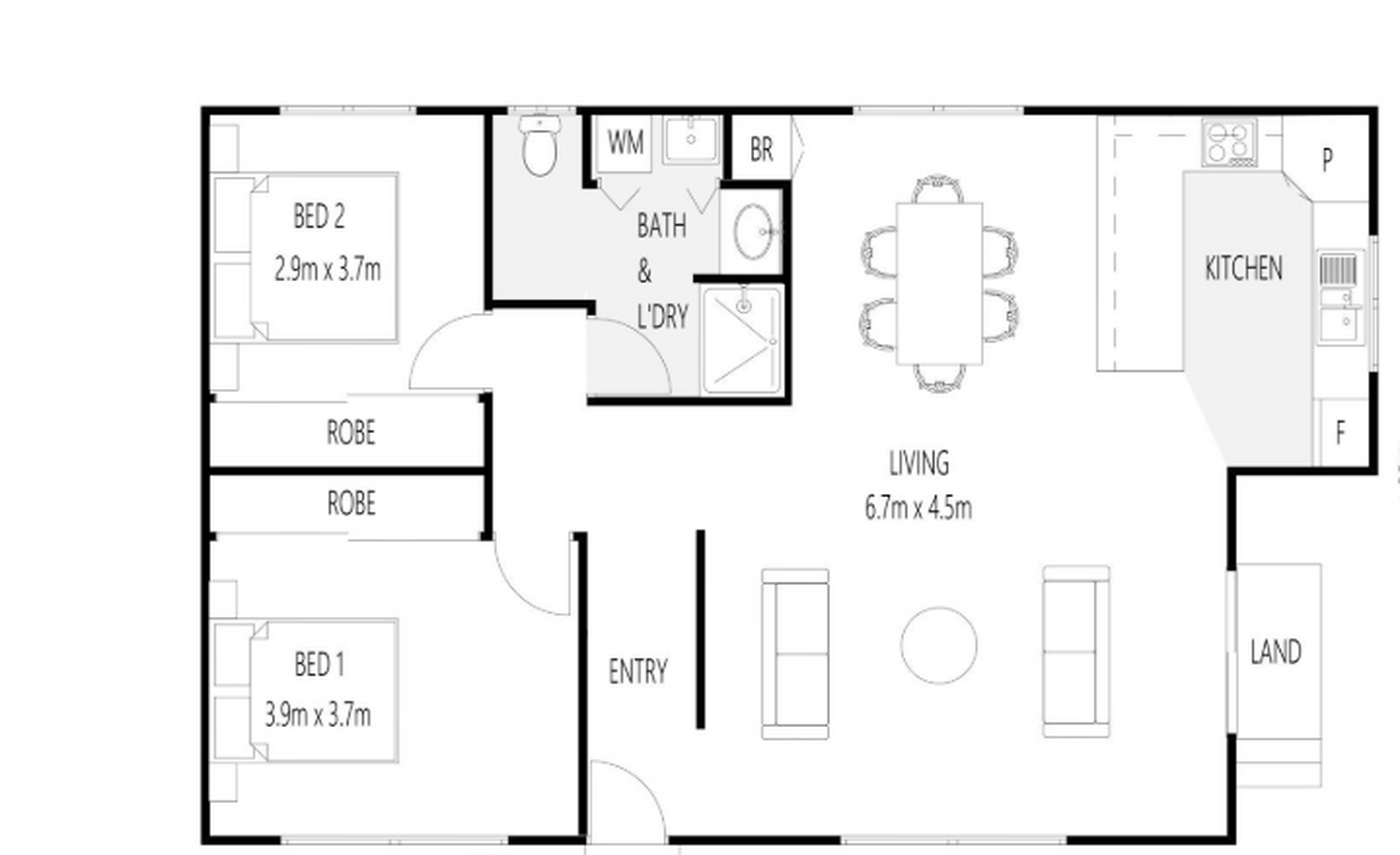

Individual floorplan · D106-S11
A coordinated concept plan for Duo Courtyard.
This coordinated concept layout replaces a duplicated reference sheet and follows the published Duo Courtyard room schedule: two measured bedrooms with robes, a combined bathroom and laundry, courtyard-linked kitchen and living, entry, and a separate 3.50 × 6.00 m carport.
Ground floorD106-S11
Concept floor plan · not for construction
Separate carportD106-S11
Concept floor plan · not for construction
Design highlights
106 m² indicative residence area
127 m² combined covered footprint including the separate carport
Bedroom 1: 3.9 × 3.7 m
Bedroom 2: 2.9 × 3.7 m
Living and dining: 6.7 × 4.5 m

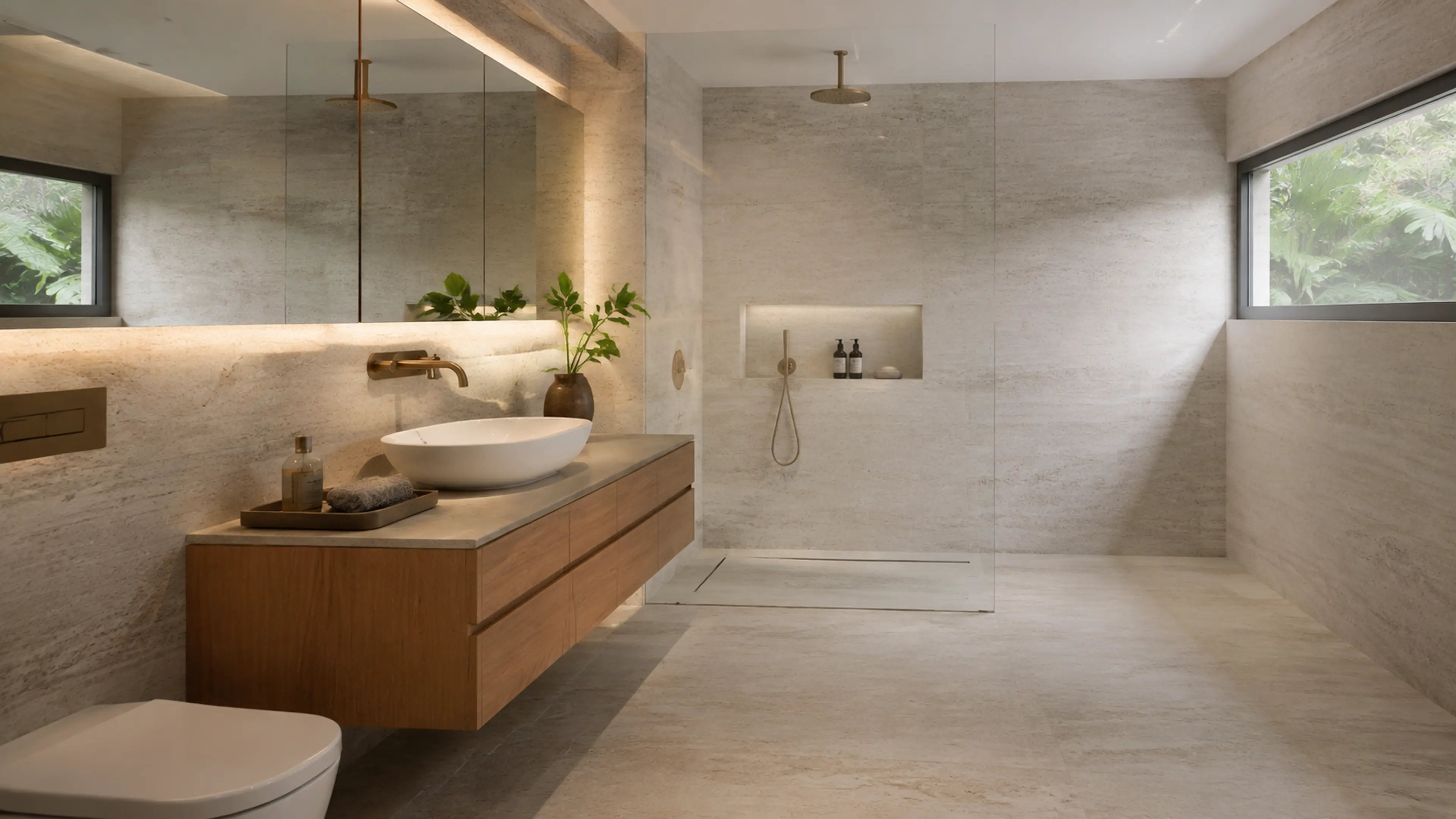

Combined bathroom and laundry

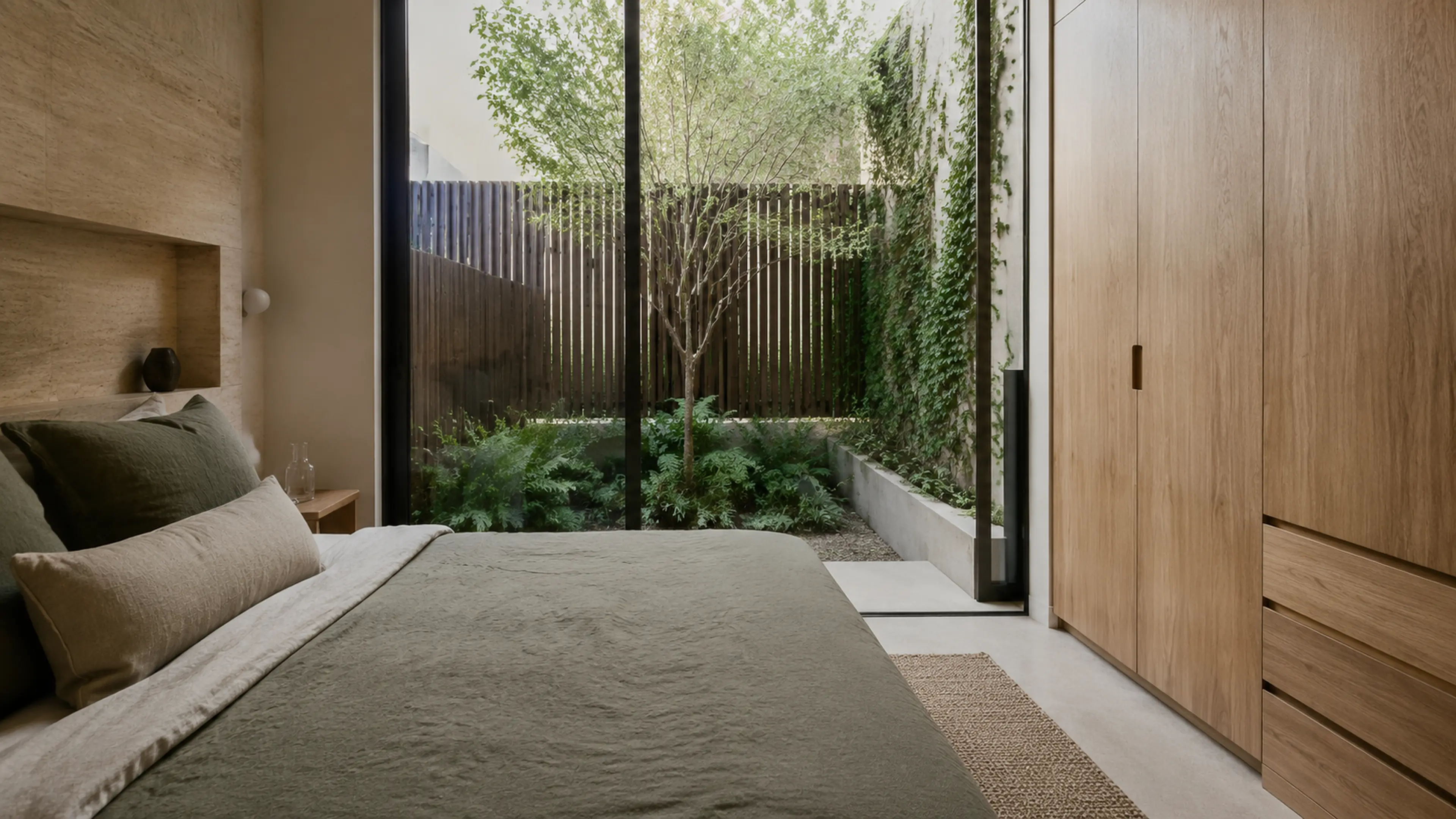

Built-in robes to both bedrooms
Separate 3.50 × 6.00 m carport · 21.0 m² additional
9.0 × 13.0 m residence envelope
Area schedule
Ground-floor residence102.0 m²Covered entry4.0 m²Residence area106 m² · 11.41 sqSeparate shed-style carport21.0 m² · additionalCombined covered footprint127 m² · 13.67 sq

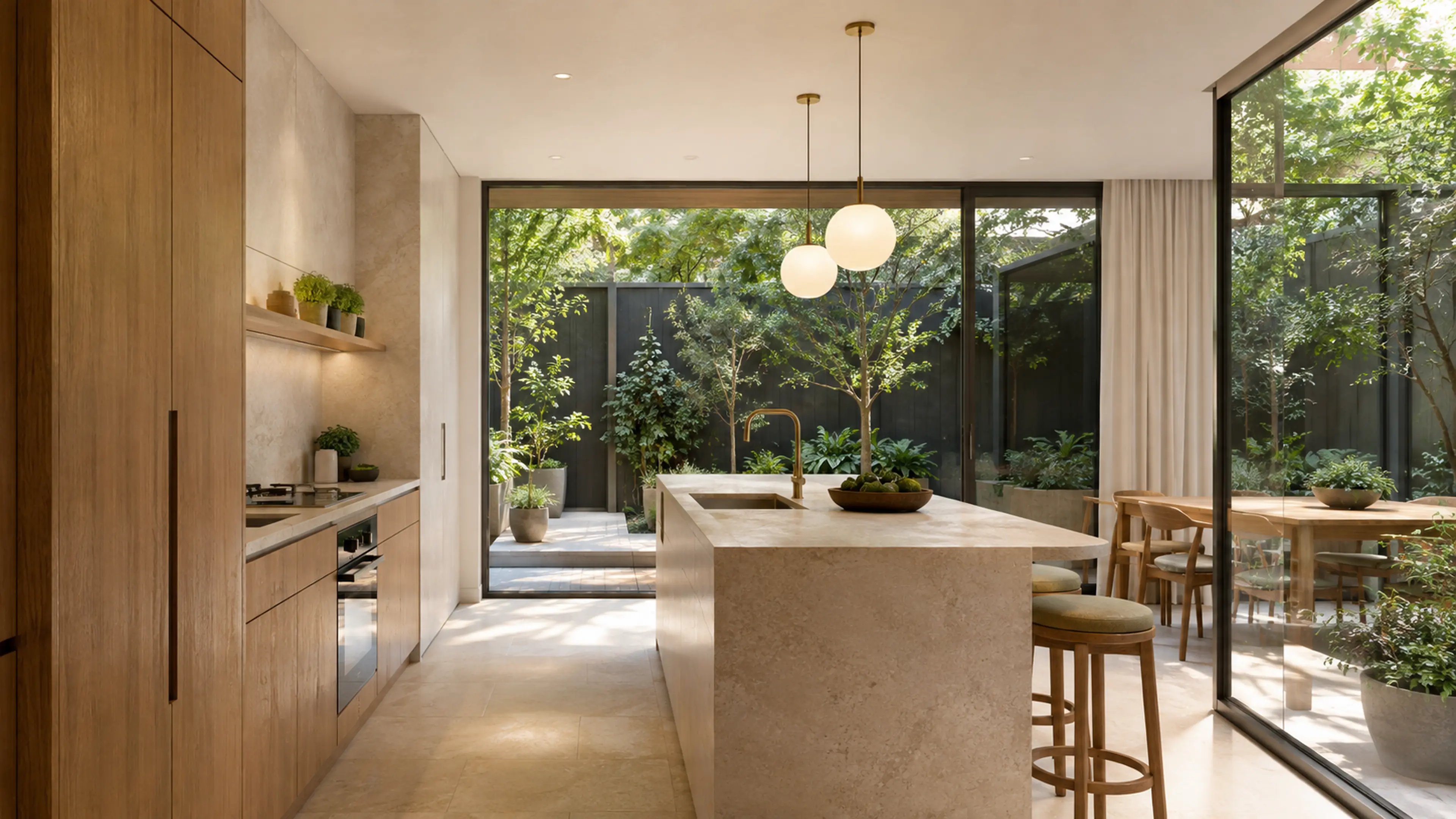

Interior direction
Contemporary Flexible Living
The finishes shown in the slider establish this home’s individual character. Final products and inclusions are confirmed during design.
Premium by design
Luxury is created through proportion, light and craftsmanship—not decoration alone.
Each visual uses a distinct material direction so the collections do not feel copied. Final cabinetry, stone, lighting, flooring, fixtures and external materials will be coordinated with the selected plan and budget.
Your life. Your way. Your home.
Make Duo Courtyard fit your land and life.
Share your block and requirements so the indicative concept can progress into site-specific architectural, engineering and contract documentation.
